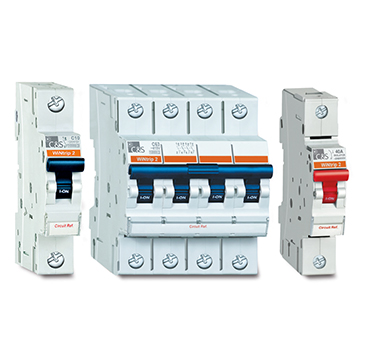

WiNtrip MCB & Isolator
As power distribution needs play a pivotal role in all the significant sectors namely Commercial, Industrial and Residential, improved Breaker performance through better electrical safety, higher operational endurance, continued service and reduced cost have become of paramount importance. C&S MCBs have been engineered to constantly fulfill the above requirements. With these features C&S is setting new standards for user friendly and superlative electrical circuit protection.
The C&S MCB is a high performing Thermal Magnetic current limiting device with the ability to disconnect short circuits up to 10kA. The range is available in tripping characteristics types B, C and D for 1P, 1P+N, 2P, 3P, 3P+N & 4P configurations in 0.5 – 125A current ratings. All metal components for operating mechanism of WiNtrip circuit breaker are specially treated for high self lubrication leading to repeat accuracy during service life. The MCBs conform to Standards: IEC 60898-1995 and IS/IEC 60898-1:2002 and stand guaranteed for best quality for optimum performance.

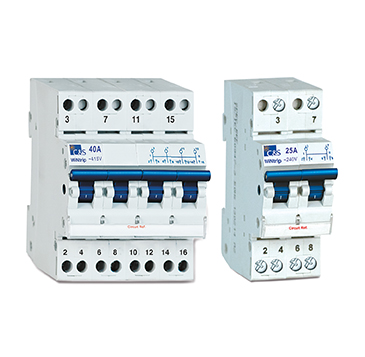

WiNtrip – MCB Changeover Switch
As power distribution needs play a pivotal role in all the significant sectors namely Commercial, Industrial and Residential, improved Breaker performance through better electrical safety, higher operational endurance, continued service and reduced cost have become of paramount importance. C&S MCBs have been engineered to constantly fulfill the above requirements. With these features C&S is setting new standards for user friendly and superlative electrical circuit protection.
The C&S MCB is a high performing Thermal Magnetic current limiting device with the ability to disconnect short circuits up to 10kA. The range is available in tripping characteristics types B, C and D for 1P, 1P+N, 2P, 3P, 3P+N & 4P configurations in 0.5 – 125A current ratings. All metal components for operating mechanism of WiNtrip circuit breaker are specially treated for high self lubrication leading to repeat accuracy during service life. The MCBs conform to Standards: IEC 60898-1995 and IS/IEC 60898-1:2002 and stand guaranteed for best quality for optimum performance.

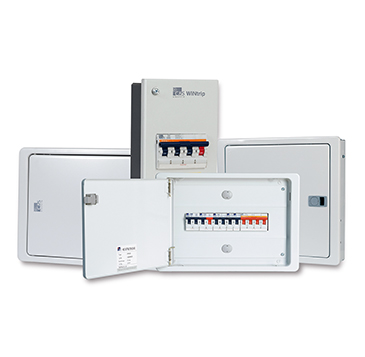

Distribution Boards
The Board design is specially engineered for meeting the requirements of all the segments namely industrial, commercial and residential. For effective and safe power distribution/sub distribution, insulated neutral links, insulated copper bus bar, earth bar and inter connecting links with lugs are part of the unit. These Boards are equipped with top and bottom removable gland plates with adequate number of knock outs, which enable easy installation and connection of conduits of all sizes. Double door construction of Distribution Boards enables easy removal and reversal of the door by just unhinging two springs. These boards are a comprehensive system in itself. The Boards are backed by the technological expertise of C&S which excels globally in all low voltage products.
The boards are of universal type, which means they can be both flush or wall mounted based on the requirement. These Distribution Boards undergo a seven tank phosphating process to ensure an anti rust conditioning, superior finish and long lasting strength. 60 micron premium quality powder coating is applied for extra smooth finish. In addition to complying with all necessary minute technical parameters, C&S WiNtrip Distribution Boards are highly user friendly and aesthetically par excellence. Double Door DBs meet all the requirements of IP 42/43.
