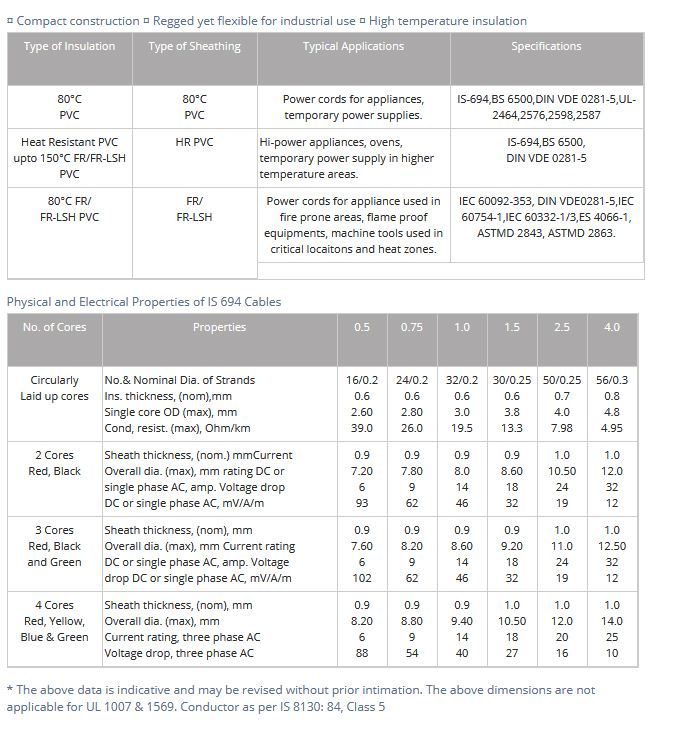

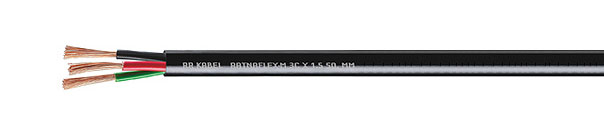

Multicore flexible cables for appliances & machine tools Upto & Including 1100V
Conductor : Compactly bunched, electrolytic grade, annealed copper with high flexibility according to class 5 conductor as per IS 8130 sizes from 0.5 sq. mm to 50.0 sq. mm.
Colours : Black & Grey. White available on request.
Packing : 100 mtr. coils. Longer lengths can be made available on request.

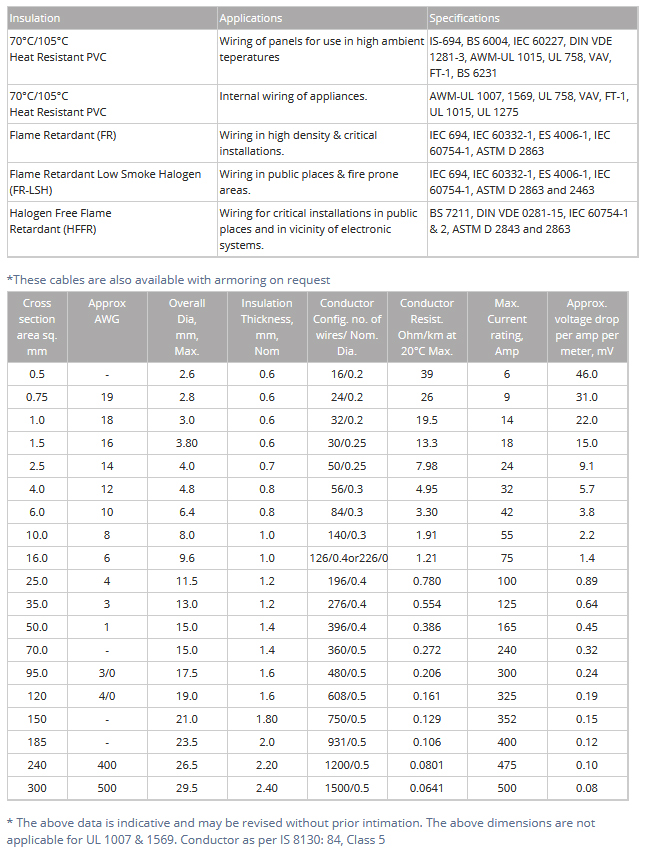

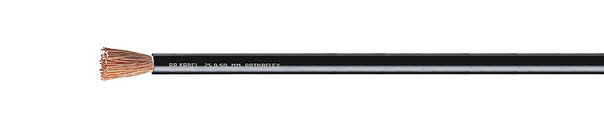

Flame Retardant Cable – upto 1100V
Conductor : Compactly bunched, electrolytic grade, annealed copper with high flexibility according to class 5 conductor as per IS 8130.
Available in various sizes from 0.5 sq. mm to 300 sq. mm.
Colours : Red, Blue, Green, Yellow, Grey & Black
Packing : 100 mtrs. Coils. Longer lengths can be made available on request

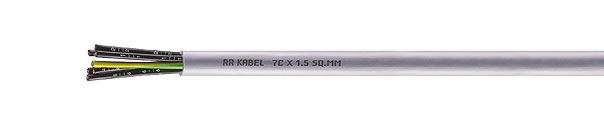

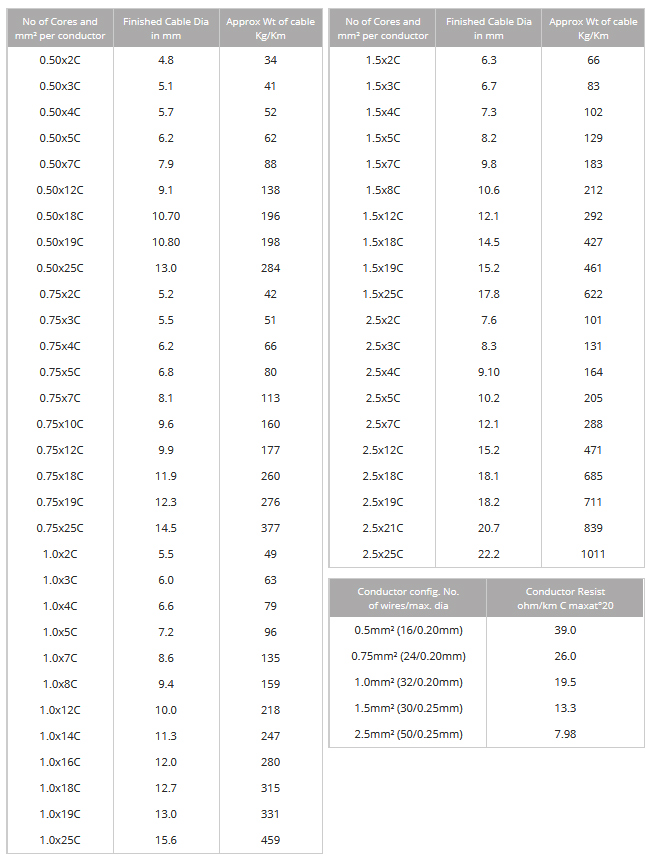

PVC Industrial & Sheathed flexible control cables – Upto 1100 V
Applications : These cables are used for flexible use for medium mechanical stresses with Free Movement without tensile stress in dry & moist condition for measuring and control cables in tool machines, conveyor belts, production lines in machinery production and in steelproduction.
Conductor : Annealed Bare Copper as per IS 8130, Class 5
Insulation PVC : Type A conforming to IS 5831
Sheath Colour : Black / Grey
PVC Sheath : Type ST-1 conforming to IS 5831.HR, FR and FRLS sheathing can be provided as per requirement.
Core Colours : Black with white numbering + Green / Yellow (earth core)
Rated Voltage : 300/500 V
Test Voltage : 2000 V A.C
Min. Bending Radius : Flexing 7.5 x the overall dia.of cable
Fixed Installation : 4 x the overall dia. of cable 105 C
Max Short Circuit Temperature : 160 C
Minimum Laying Temperature : Upto -15O C
These cables comply with the requirements of DIN VDE 0245, 0281, 0293, 295
